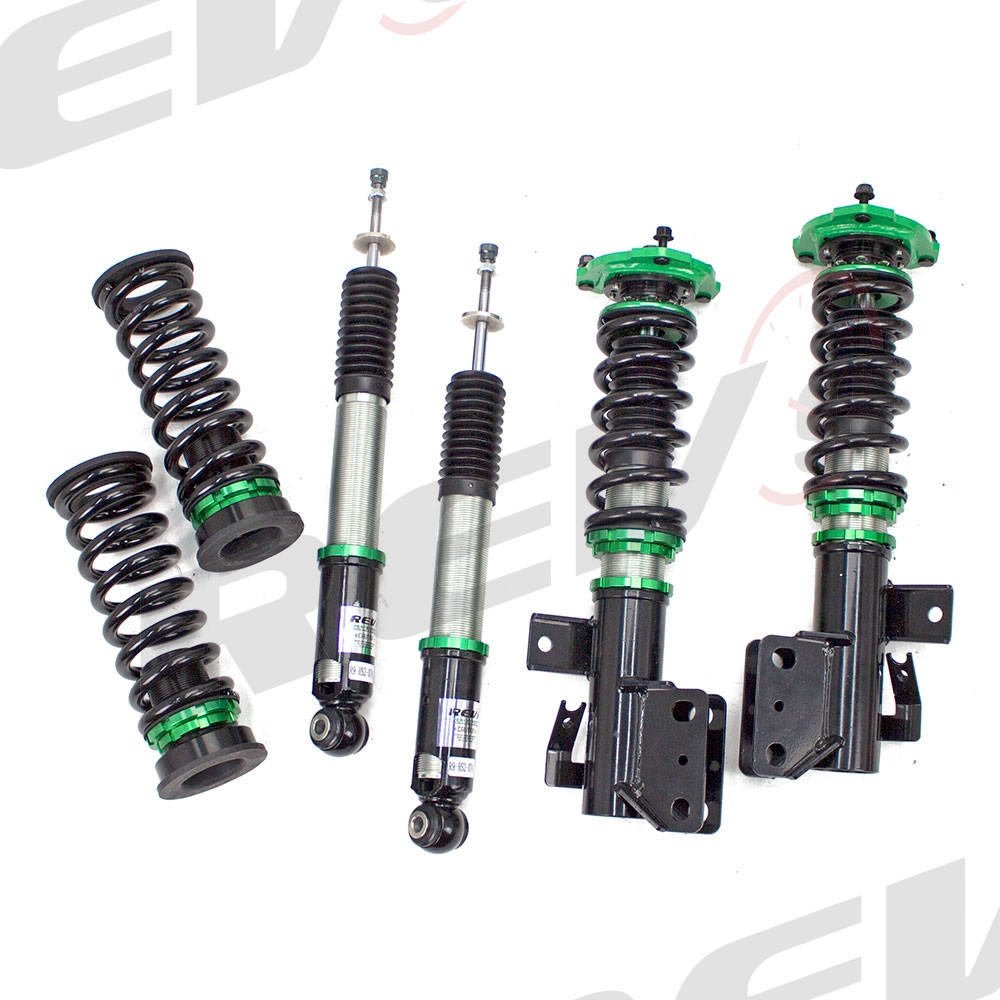

For Cadillac ATS RWD 2013-19 Rev9 Hyper-Street II Damper Coilovers Kit w/ 32-Way Damping Force Adjustment
For Cadillac ATS RWD 2013-19 Rev9 Hyper-Street II Damper Coilovers Kit w/ 32-Way Damping Force Adjustment
)
Product Description
Quick Overview
Hyper-Street II Coilover Suspension Upgrade Compatible With Cadillac ATS RWD 2013 2014 2015 2016 2017 2018 2019; Excludes AWD and MagneRide Suspensions
CALIFORNIA WARNING: Product Contains "Nickle" That Know To Cause Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Details
Hyper-Street II coilover suspension upgrade features mono-tube shocks with 32 clicks rebound settings and full length adjustable. Mono-tube shocks provides larger capacity for gas and oil to improve comfortable level of typical lowering vehicle. Special 32 clicks of valving allows user to fine tune rebound force settings. Independent spring tension and full length adjustable allows drop without sacrifice comfort by shorten pitch distance.
- Full Steel Alloy Constructions With Aluminum Hardware
- Mono-Tube Shocks Provide Larger Capacity of Oil And Gas
- 32 Clicks of Rebound Force Adjustment
- Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
- Independent Spring Tension - Custom Stiffness Without Change Ride Height
Additional Information
| Special Notes | No |
|---|---|
| Damping Levels | 32 Levels |
| Height Adjustment | Yes |
| Spring Rate(Front) | 8 kg/mm (448 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 190 mm |
| Spring Length(Rear) | 220 mm |
| Front Top Mount | Yes, With Pillow Ball |
| Rear Top Mount | No, Reuse Factory Top |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
