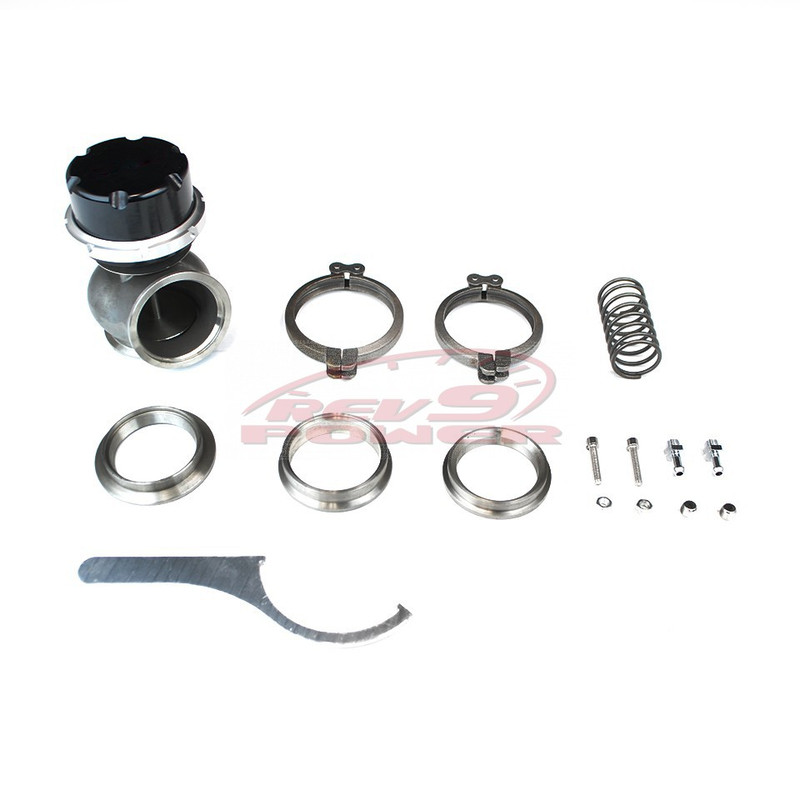

60mm VBAND RS-Series Wastegate (universal)

- Includes 5 psi, 12 psi, and 14 psi springs (combination of 31 psi)
- Dual port = accurate boost
- Ultra durable diagram (diaphram)
- Includes all hardware (bolts, gasket etc)
- High quality appearance
- Simple one step process for removal or installation of different wastegate springs
- 1 year warranty with professional installation

This wastegate is 5.5" inches tall.

5 psi spring :  outer diameter : 36.5mm /  length :  75mm (inside wastegate)
12 psi spring : outer diameter : 59mm / length : 121mm
14 psi spring :  outer diameter : 49mm  / length : 113 mm

Example : You can use the 5 psi / 12 psi / 14 psi spring alone  or combine them together. By using the 5 psi & 14 psi spring, you will get 19 psi . By using all three springs together, you will result in 31 psi.
