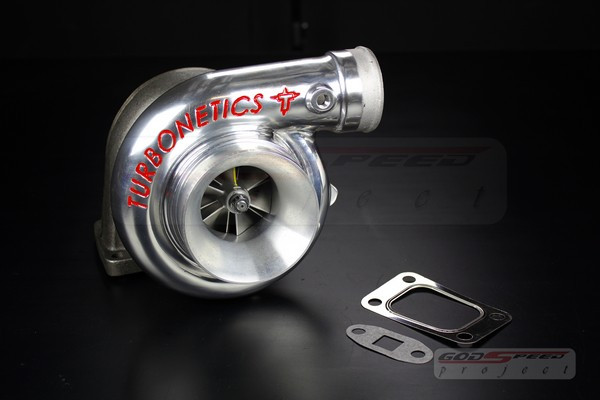

TURBONETICS TURBO CHARGER 60 SERIES  (CUSTOM)

JOURNAL BEARING
HORSE POWER: 300-550 HP
COMPRESSOR COVER SIZE : 60 SERIES
INTAKE : 4" INCH
INLET : 2.5" INCH
H-61 COMPRESSOR WHEEL
COMPRESSOR WHEEL DIAMETER:  61.41  /  81.99 mm
F-1 57 TURBINE WHEEL
TURBINE WHEEL DIAMETER : 64.89 / 56.99 mm
TURBINE HOUSING AR :  63
TURBINE FLANGE : T3  4 BOLT  /    4  BOLT DOWNPIPE FLANGE
COOLING TYPE : DRY HOUSING ( OIL COOLED ONLY)
