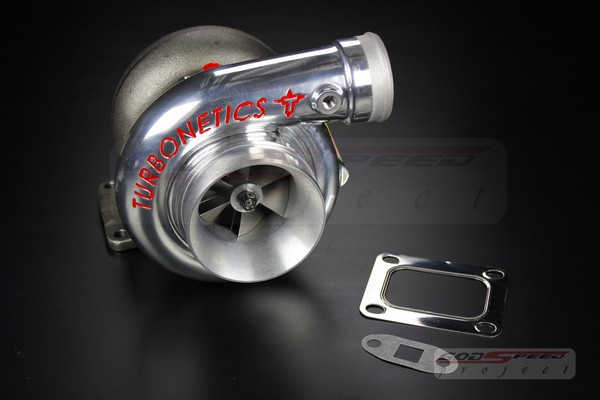

TURBONETICS T4 60-1 TURBO  .58

JOURNAL BEARING

HORSE POWER: 400-550 HP
COMPRESSOR COVER SIZE : 60 SERIES
INTAKE : 4" INCH
INLET : 2.5" INCH
H-61 COMPRESSOR WHEEL
COMPRESSOR WHEEL DIAMETER:  61.41  /  81.99 mm
F-1 62  TURBINE WHEEL
TURBINE WHEEL DIAMETER : 62.00 /  70.993 mm
TURBINE HOUSING AR :  58
TURBINE FLANGE : T4  4 BOLT  /   3" V BAND  EXHAUST
COOLING TYPE : DRY HOUSING ( OIL COOLED ONLY)

1 YEAR WARRANTY ( MANUFACTURER WARRANTY BY TURBONETICS)
