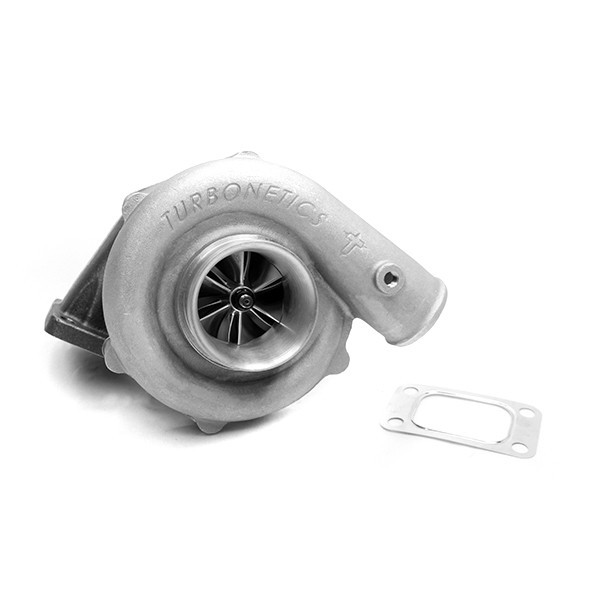

TURBONETICS TNX-30 BILLET COMPRESSOR WHEEL DUAL BALL BEARING TURBO  ( 65  A/R)

PART NUMBER : 11816-BB

BILLET COMPRESSOR WHEEL
INTAKE : 3" INCHES
INLET : 2" INCHES
COMPRESSOR WHEEL  :  BILLET COMPRESSOR WHEEL
COMPRESSOR WHEEL SIZE : 72 / 56 MM
TURBINE WHEEL SIZE : 60 / 48MM
TURBINE HOUSING :  T3  .65AR
TURBINE INLET / OUTLET  :   T3 FLANGE /  3" V BAND
OIL AND WATER COOLED ONLY : WET HOUSING
DUAL BALL BEARING
MAX HORSEPOWER OUTPUT : 500 HP

Note: TNX Turbos come standard with a 16mm water cooled bearing housing.
