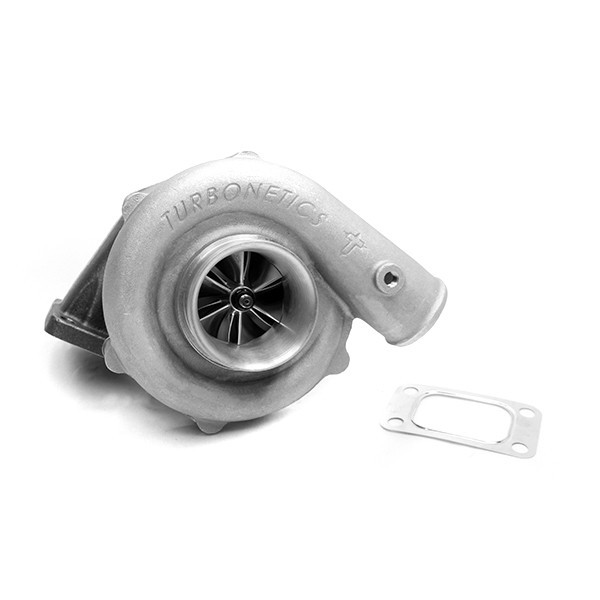

Turbonetics TNX-30 / 60 (78/60) Billet Wheel Journal Bearing .65 A/R

PART NUMBER : 11817

BILLET COMPRESSOR WHEEL
INTAKE : 3" INCHES
INLET : 2" INCHES
COMPRESSOR WHEEL  :  BILLET COMPRESSOR WHEEL
COMPRESSOR WHEEL SIZE : 78 / 60 MM
TURBINE WHEEL SIZE : 60 / 48MM
TURBINE HOUSING :  T3  .65AR
TURBINE INLET / OUTLET  :   T3 FLANGE /  3" V BAND
OIL AND WATER COOLED ONLY : WET HOUSING
JOURNAL BEARING
MAX HORSEPOWER OUTPUT : 650 HP

Note: TNX Turbos come standard with a 16mm water cooled bearing housing.
